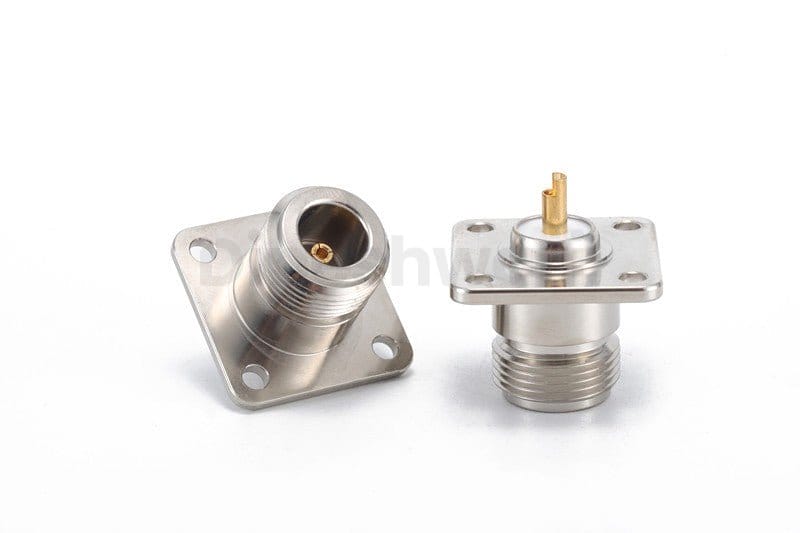

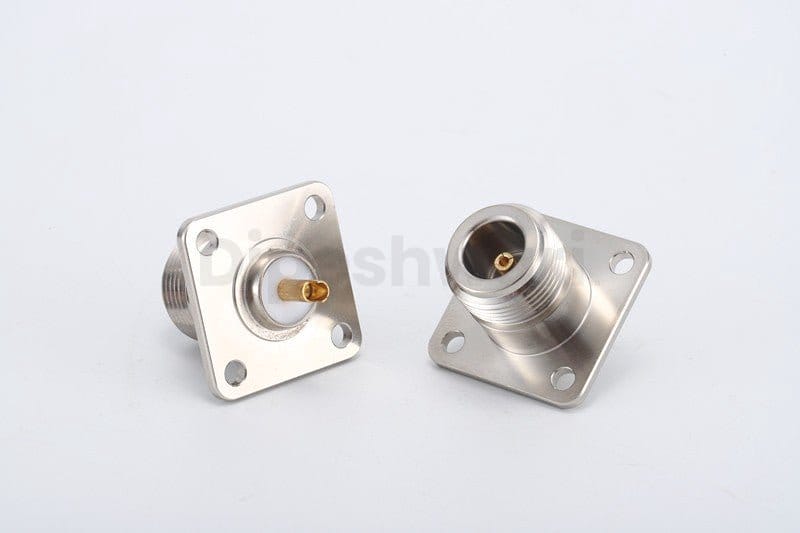

The N female 4Hole Flange Mounted Sq.25mm Conn. Terminal is designed to provide a rugged panel mount connection for RF cables. This N female connector is secured to the face of a panel using a 4-hole flange with a 25 mm square mounting pattern. These terminals are designed to spread the mounting forces over a larger area to prevent localized stress on the solder joints and the internal contacts. N female connectors are often used in applications where high vibration or exposure to the weather is present. They provide a secure threaded connection for N type coaxial cables. The metal body of the connector provides excellent shielding, while the dielectric used provides low loss and ensures that the correct impedance is maintained. These rugged connectors are suitable for use in a variety of applications including RF, microwave, test and measurement, and base station communications systems. A simple 4-hole flange design ensures that this Terminal is easy to incorporate into any new design or retrofit project. The 25 mm square pattern of the flange allows for easy mounting to a variety of panels using existing hardware. The connector is secured to the cable using an N type female to female or female to male cable. The connector provides reliable performance over a wide frequency range when used with suitable cables and system components. Typical applications include RF cabinets, antenna feeds and test fixtures that require a rugged panel mount connection.

• Standard N-type female RF interface for secure threaded connections
• 4-hole flange with 25 mm square mounting pattern for stable panel installation
• Rigid flange mounting helps reduce stress on internal solder joints and contacts
• Robust metal body construction for durability and RF shielding
• High-quality insulating dielectric for stable impedance and low insertion loss
• Compatible with common N-type coaxial cables in RF and microwave systems
• Suitable for panel
• bulkhead
• and enclosure mounting in communication equipment
• Designed for use in antennas
• base stations
• test fixtures
• and RF cabinets
