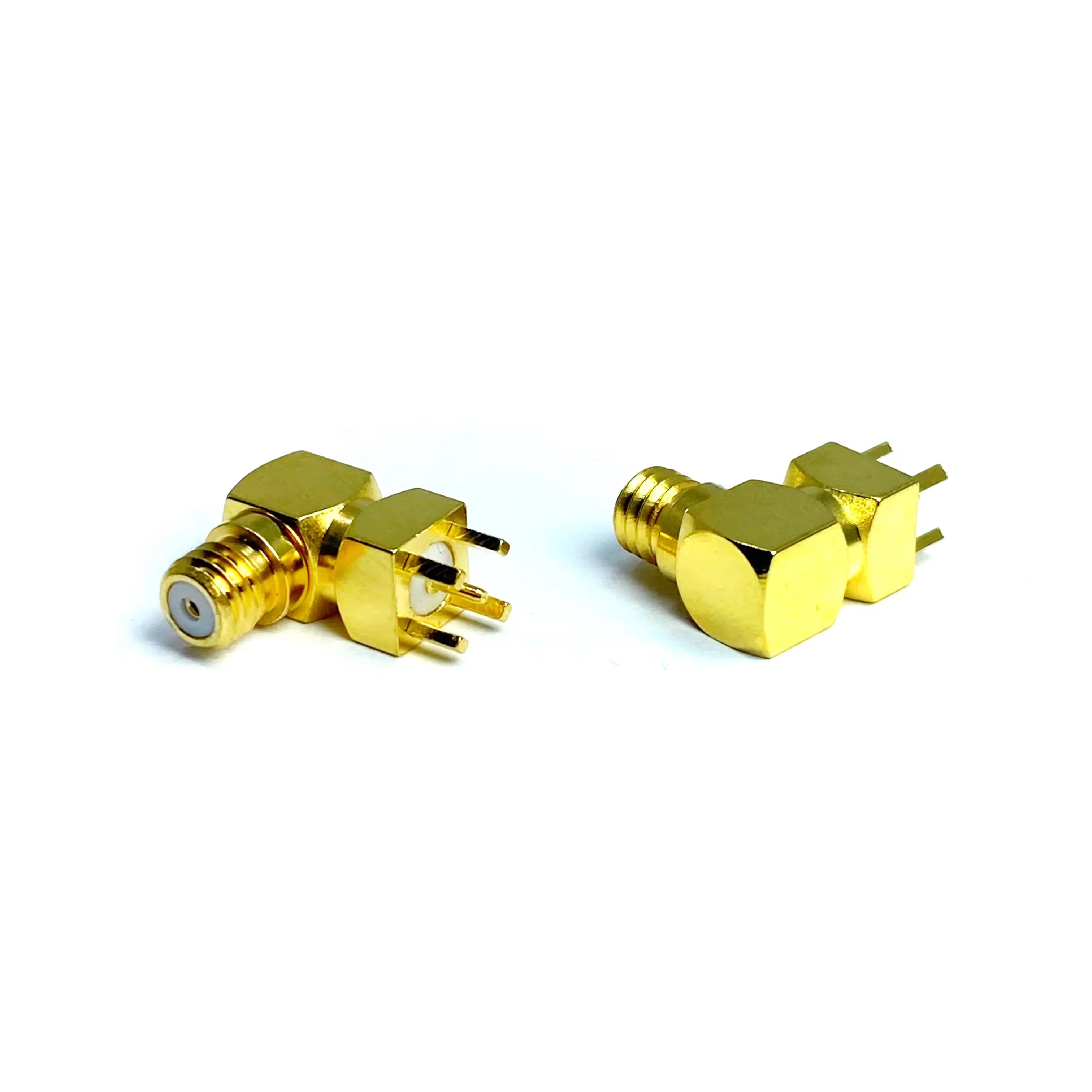

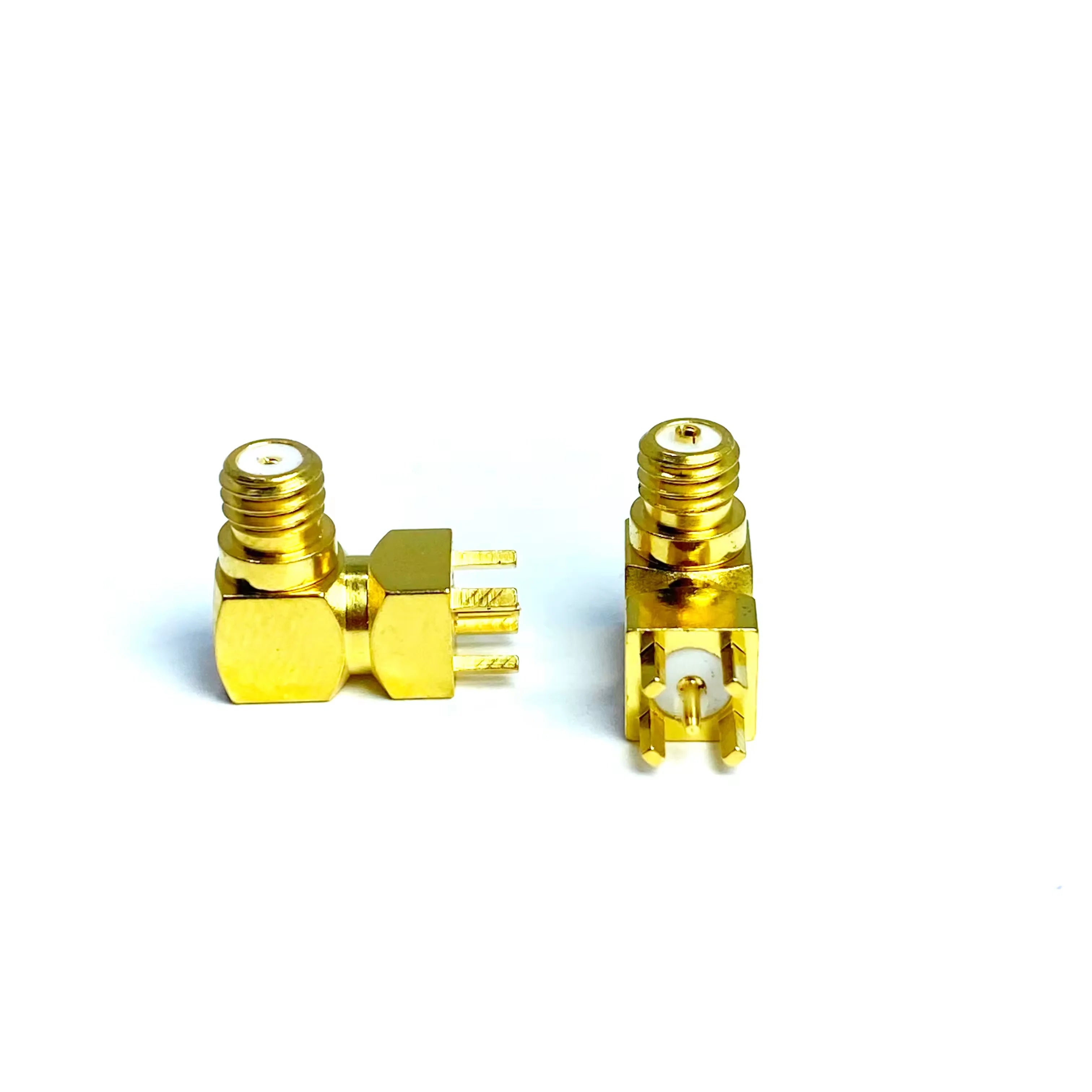

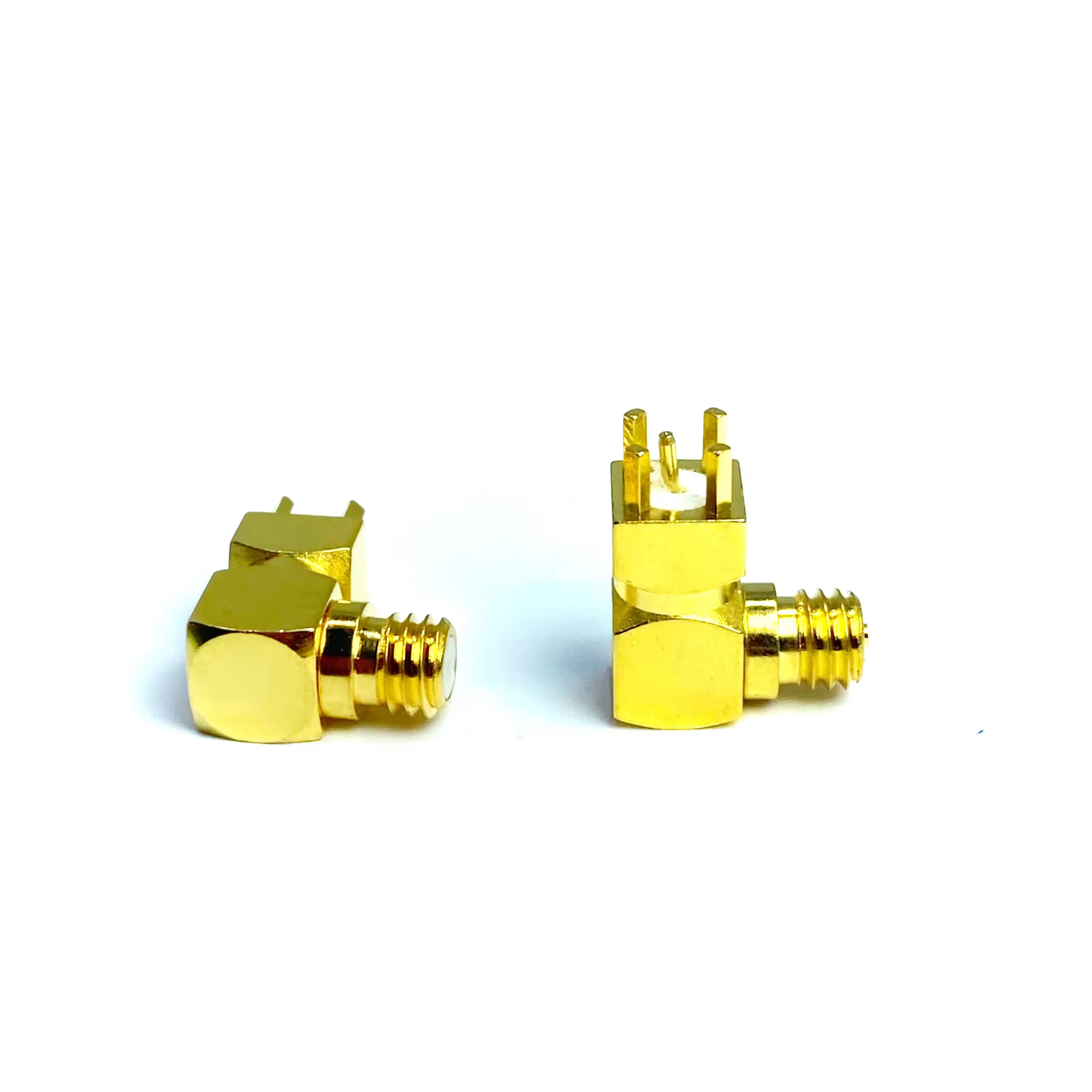

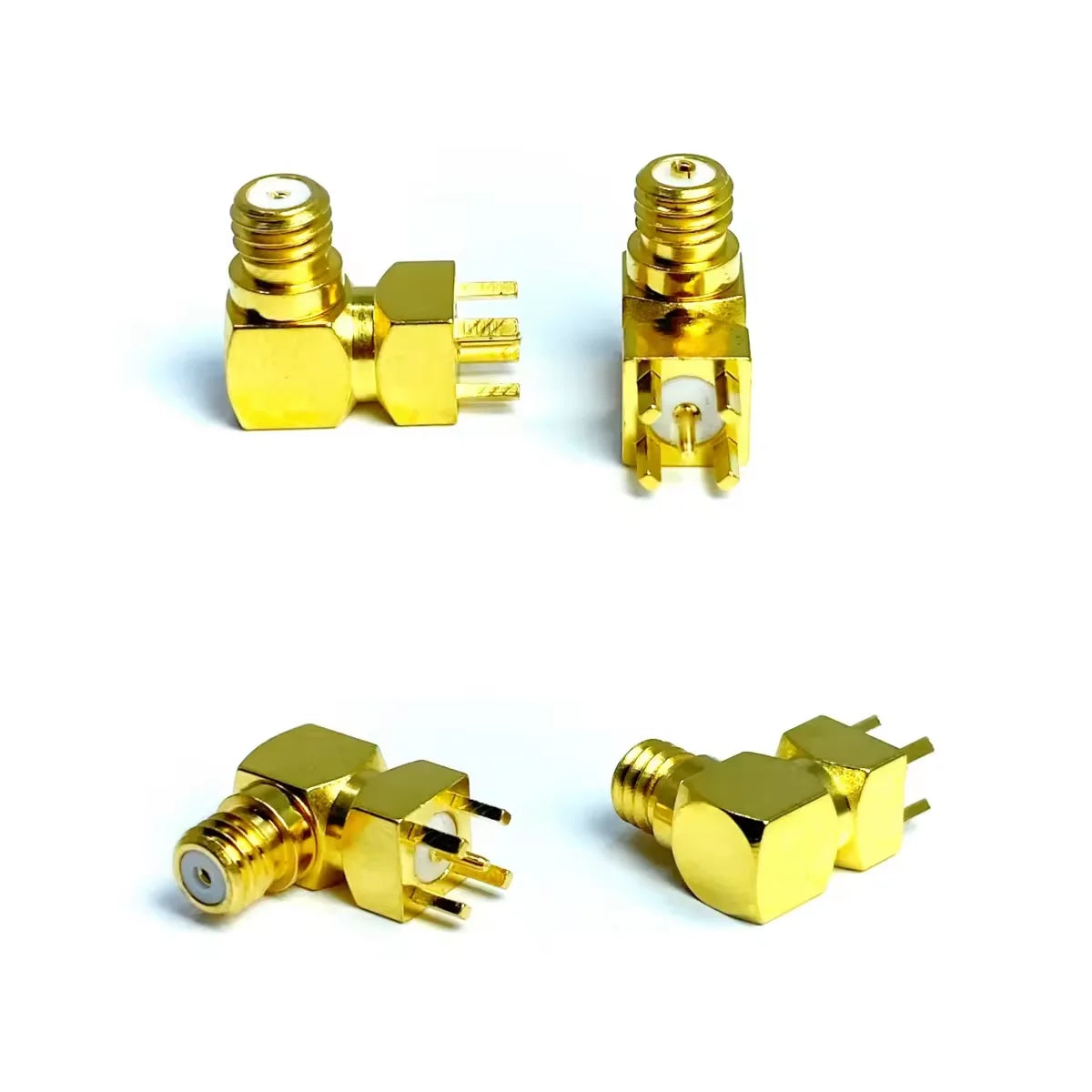

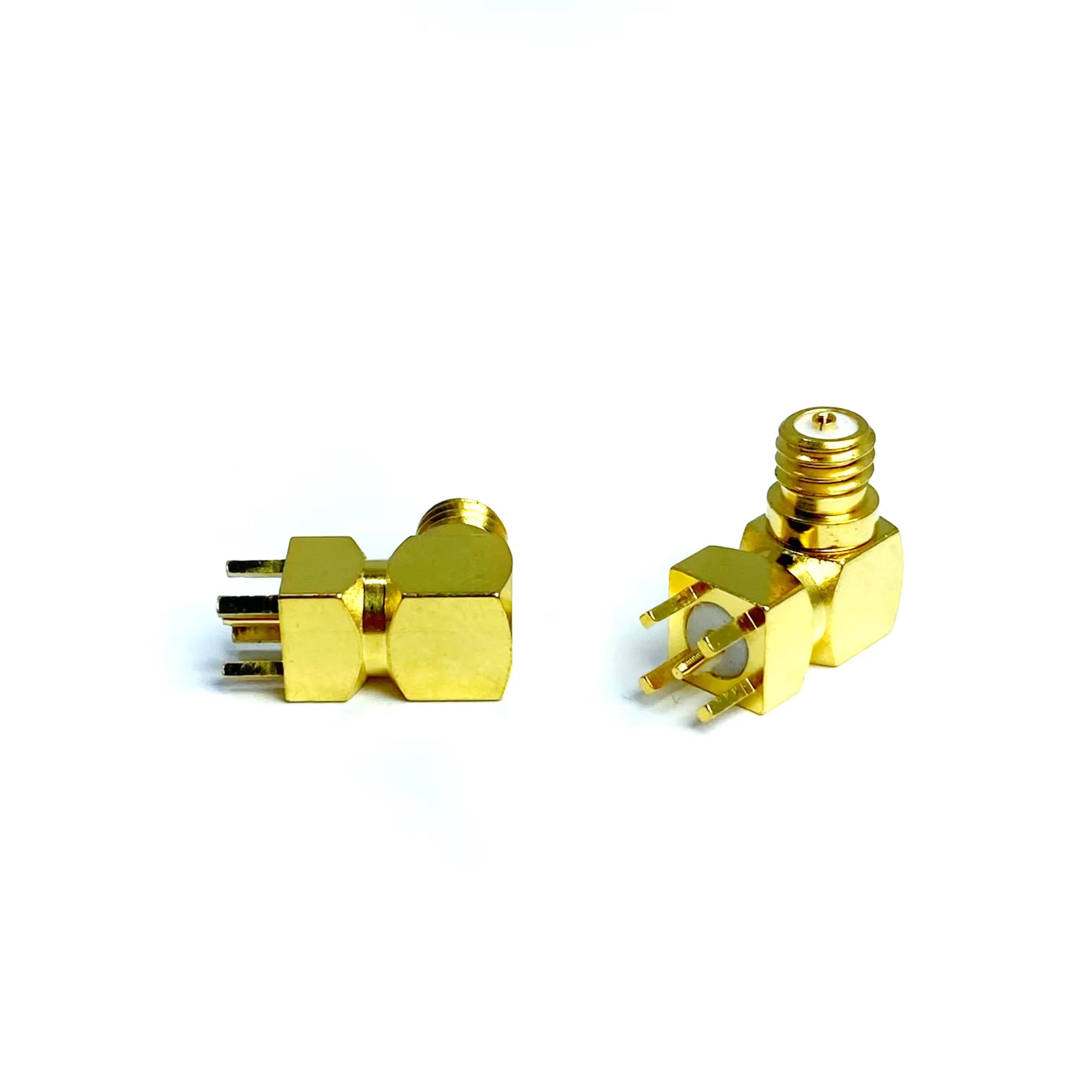

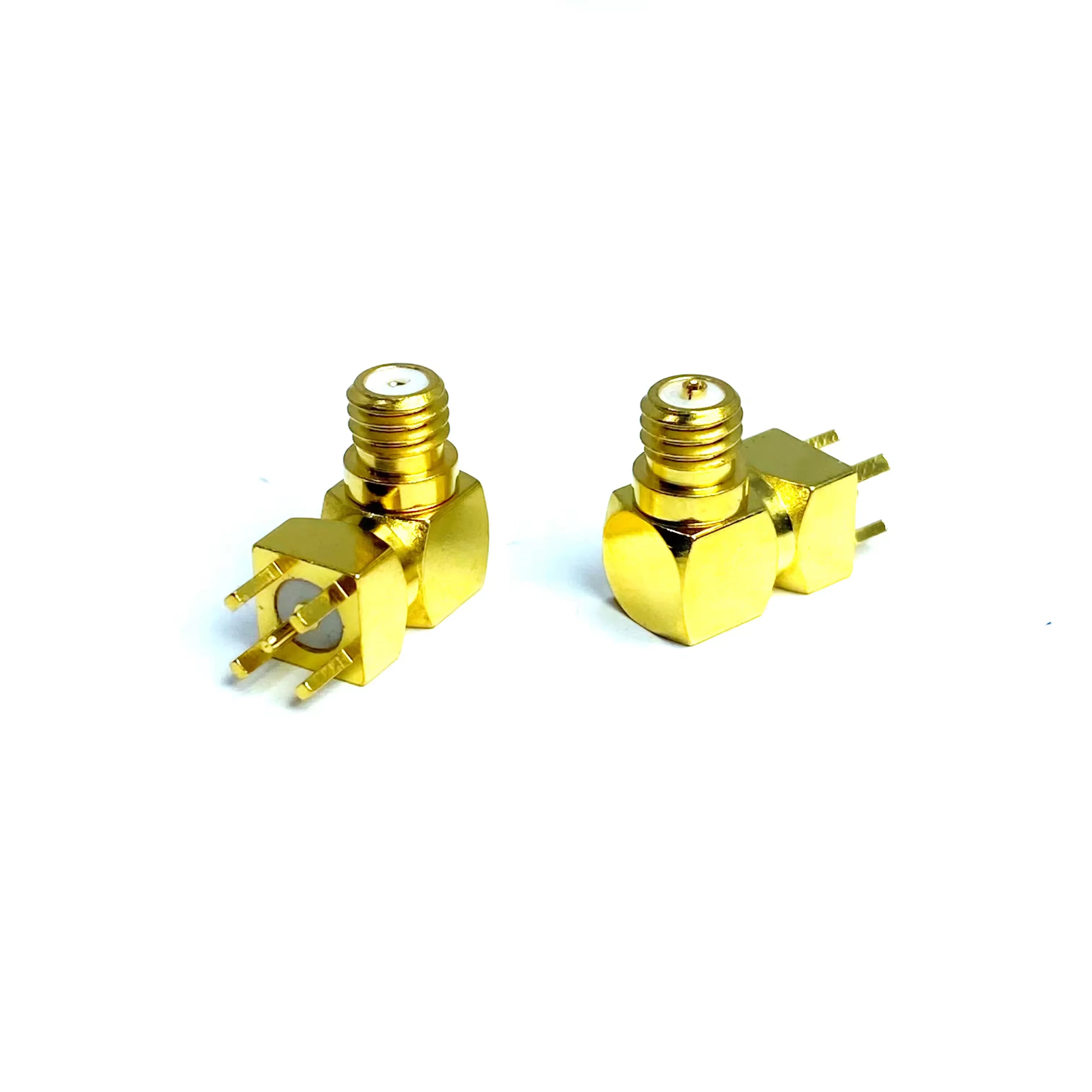

The 10-32 Microdot Female PCB Mount Connector is engineered for designers and technicians who need a compact, dependable RF interface directly on the circuit board. This style of connector is widely used in sensor systems, vibration and acoustic measurement setups, and portable test instruments, where reliable signal integrity and minimal footprint are essential. By mounting directly to the PCB, this Microdot female jack shortens the signal path compared with panel or cable-mounted alternatives. That helps reduce potential noise pickup, improves overall signal quality, and simplifies internal wiring. The result is a cleaner, more organized design with fewer internal cables to route, secure, and maintain. Designed around the 10-32 (Microdot) form factor, it provides a consistent 50-ohm interface compatible with standard Microdot coaxial cables commonly used in laboratories and industrial test environments. The female interface ensures a secure, repeatable connection to mating male Microdot plugs, supporting frequent connect/disconnect cycles without compromising performance. Its PCB mount legs or pads are laid out for stable mechanical anchoring and reliable solder joints, making it suitable for both prototype boards and production runs. The compact housing supports high-density layouts where board real estate is tight, enabling multiple sensor or RF channels to be brought onto a single PCB without crowding. Typical applications include accelerometer and sensor front-ends, data acquisition modules, portable instrumentation, and custom test fixtures. Whether you are building a new measurement platform or upgrading an existing design, this 10-32 Microdot Female PCB Mount Connector offers a simple, robust way to integrate standard Microdot cabling directly into your board-level architecture.

• Compact 10-32 Microdot female RF interface for PCB mounting
• Designed for 50-ohm impedance signal paths (typical for Microdot systems)
• Direct PCB mount for reduced cable clutter and shorter signal paths
• Secure mechanical retention for reliable lab and industrial use
• Compatible with standard 10-32 (Microdot) male cable assemblies
• Suitable for high-density layouts and space-constrained designs
• Ideal for sensors
• test
• and measurement
• and instrumentation PCBs
• Supports frequent connect/disconnect cycles with consistent performance
