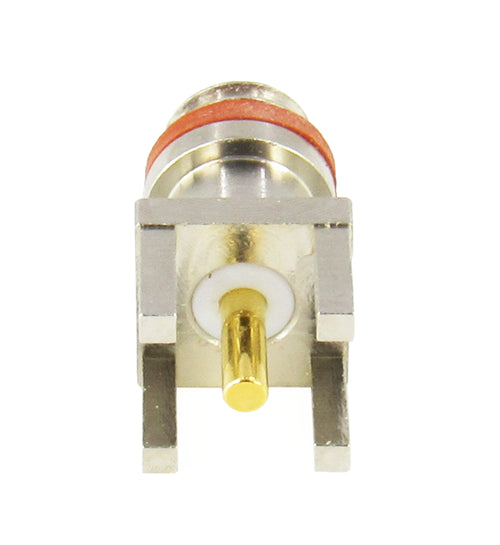

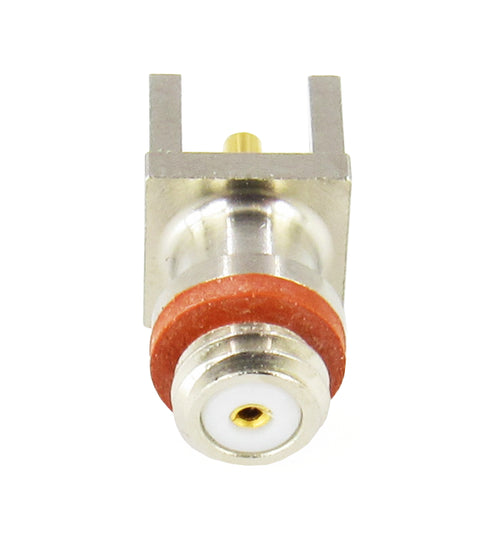

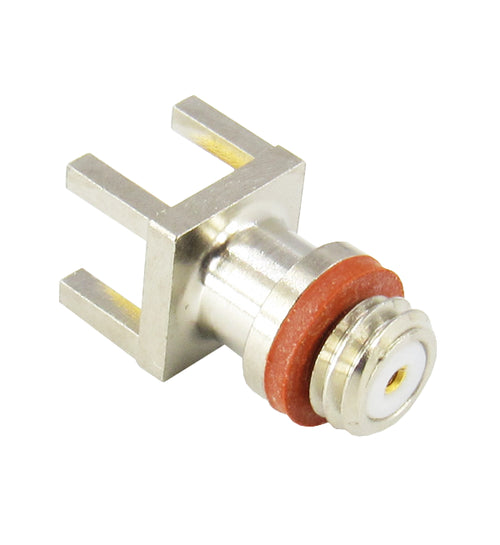

The 10-32 Microdot Female PCB Mounted Connector is purpose-built for applications where board space is tight, performance is critical, and connections must be both stable and repeatable over time. Designed around the familiar 10-32 Microdot interface, this connector delivers a compact footprint that integrates directly onto a printed circuit board, eliminating the need for bulky panel hardware or long pigtail leads. Commonly used in instrumentation, sensors, data acquisition systems, and laboratory equipment, the 10-32 Microdot format is a well-established choice for low- to medium-frequency RF and precise signal routing. Its threaded coupling provides a secure, vibration-resistant connection that helps maintain consistent electrical contact, even in demanding test setups or mobile systems. By mounting directly to the PCB, this female connector also contributes to cleaner signal paths, reduced insertion loss, and improved repeatability during measurements. For design engineers, the PCB-mounted style streamlines assembly and reduces wiring errors. The through-hole or pad layout (depending on variant) allows straightforward soldering, while the vertical profile keeps the connector accessible for mating with compatible 10-32 Microdot plugs. This configuration is especially useful when multiple channels are needed in a compact form factor, such as multi-channel sensor boards or high-density test fixtures. Whether you are building new measurement hardware, updating legacy systems that already use Microdot connectors, or prototyping a custom sensor interface, this 10-32 Microdot Female PCB Mounted Connector provides a dependable, industry-recognized solution. It strikes a practical balance between size, robustness, and electrical performance, making it a natural fit wherever precise, repeatable coaxial connections are required directly on the PCB.

• Compact 10-32 Microdot female interface for space-constrained PCB designs
• PCB-mounted configuration for direct integration on printed circuit boards
• Threaded coupling for secure
• vibration-resistant connections
• Suitable for RF
• sensor
• and precision signal applications
• Supports clean
• low-noise signal paths between board and coaxial cable
• Ideal for instrumentation
• test equipment
• and laboratory systems
• Mechanical stability provided by board-level mounting
• Compatible with standard 10-32 Microdot male plugs/connectors
