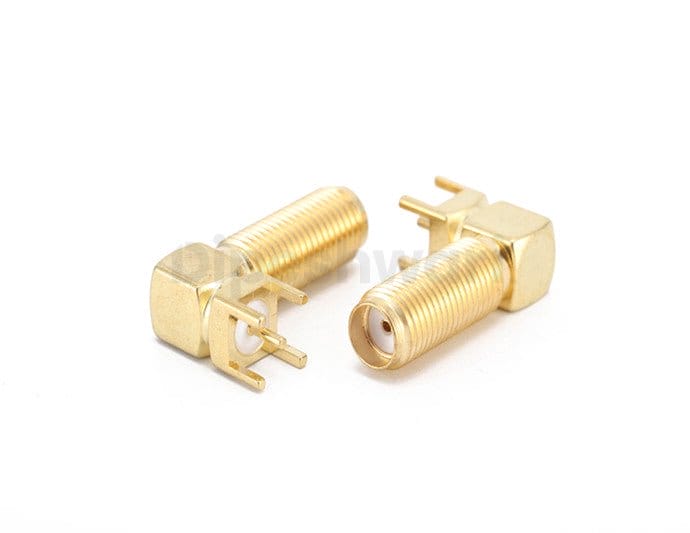

The SMA Female Right Angle Bulkhead PCB Mount Connector is a practical choice for engineers and makers who need a clean, reliable RF interface on a printed circuit board. Designed for versatility, it combines a standard SMA female jack with a right-angle PCB mount and a bulkhead flange, allowing you to securely fasten the connector to an enclosure while maintaining a robust electrical connection to the board. Its right-angle geometry helps minimize the vertical height of your assembly, which is especially useful in compact housings, low-profile devices, and portable equipment. The bulkhead feature allows the connector’s threaded SMA interface to pass through a panel or enclosure wall, giving you a sturdy, strain-relieved transition from internal circuitry to external coaxial cabling. Engineered for 50 Ω systems, this connector supports typical RF and microwave frequencies used in Wi‑Fi, cellular, ISM band, GNSS, and general test and measurement applications. When properly soldered, it offers consistent impedance and low VSWR, helping to preserve signal integrity and reduce unwanted reflections along the transmission path. The PCB terminations are designed for through-hole soldering, giving solid mechanical anchoring and dependable electrical contact. This makes it well suited for prototypes, small production runs, and volume manufacturing alike. Whether you’re integrating an RF module onto a custom board, building a lab test jig, or designing a communication device, this SMA Female Right Angle Bulkhead PCB Mount Connector delivers a professional, repeatable interface that stands up to regular mating and unmating. Overall, it’s a straightforward, no‑nonsense interconnect solution that bridges your PCB layout with the real world of RF cables and antennas, while keeping your design neat, durable, and easy to service.

• SMA female interface for standard 50 Ω RF connections
• Right angle PCB mount design for low-profile assemblies
• Bulkhead style for secure panel or enclosure mounting
• Supports typical RF and microwave frequency applications
• Through-hole solder terminations for strong mechanical retention
• Threaded SMA jack for reliable
• repeatable cable mating
• Suitable for wireless
• IoT
• test
• and communication devices
