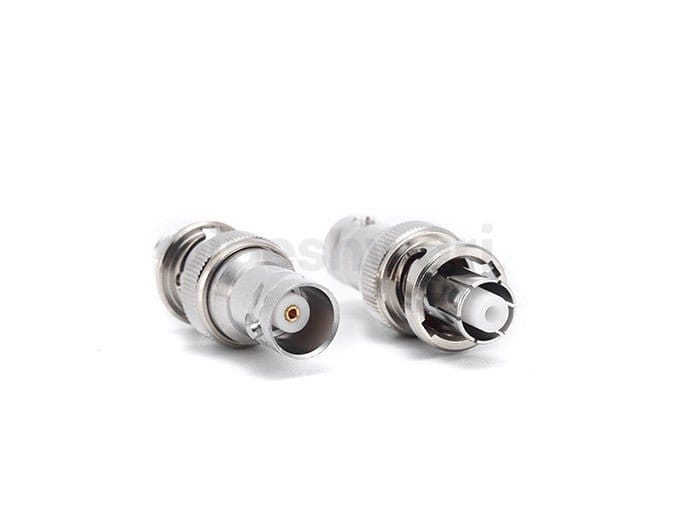

The SHV Male to BNC Female RF Adapter is a practical solution for engineers, technicians, and researchers who need to interface high-voltage SHV connections with widely used BNC-based equipment. Wherever SHV connectors are used for improved safety—such as nuclear measurement systems, photomultiplier tubes, high-voltage power supplies, or specialized test instruments—this adapter lets you integrate those devices seamlessly into standard BNC signal paths. On one side, the SHV male interface is designed for high-voltage operation, featuring a recessed center contact geometry that helps reduce the risk of accidental shock compared with conventional high-voltage connectors. Mated with a proper SHV female jack, it supports secure, keyed engagement to minimize mis-mating and ensure stable electrical contact even in sensitive test environments. On the other side, the BNC female connector gives you an instantly familiar RF interface. It works with standard BNC male plugs, allowing quick connection to oscilloscopes, meters, data acquisition systems, coaxial patch panels, and general-purpose RF cabling. This makes it especially useful in mixed setups, where some instruments use SHV for safety while the rest of the system remains BNC-based. The adapter body is typically machined from durable metal with a conductive finish for effective shielding, helping to maintain signal integrity and reduce noise pickup. Precision construction supports consistent impedance and reliable performance within its intended DC to RF frequency range. Compact and easy to handle, this SHV Male to BNC Female RF Adapter is a simple yet essential accessory for any lab or facility working with high-voltage signals. By allowing you to reuse existing BNC cable infrastructure while preserving the safety benefits of SHV connectors, it helps streamline your setup, cut down on custom cabling, and keep your measurement workflow flexible and efficient.

• SHV male to BNC female RF adapter for high-voltage to standard RF interfacing
• Designed to connect SHV-equipped instruments to BNC-based cables and equipment
• High-voltage SHV male side with recessed contact design for safer operation
• BNC female side compatible with standard BNC male plugs and coaxial leads
• Robust metal body construction for durability and effective RF shielding
• Supports DC and RF signal transmission within its specified operating range
• Compact form factor for easy integration into benchtop and rack-mounted setups
• Ideal for laboratories
• nuclear instrumentation
• and high-voltage test systems
