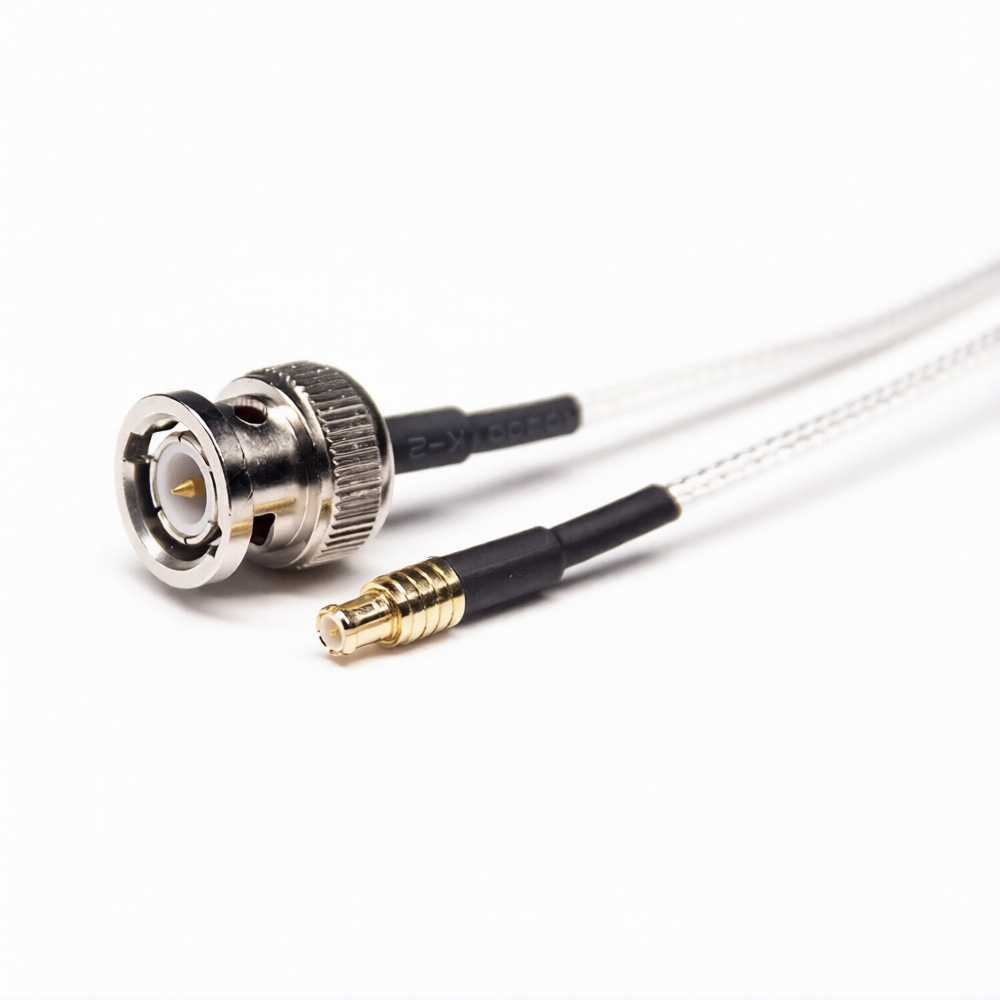

The BNC Male to MCX Male Plug RG316 Cable Assemblies are purpose-built for users who need a dependable link between standard RF equipment and compact MCX-based devices. Whether you are setting up a test bench, integrating wireless modules, or interconnecting communication gear, these cables provide a stable and consistent signal path. At the core of each assembly is a high‑quality RG316 coaxial cable with a characteristic impedance of 50 Ohms. RG316 is widely recognized for its low loss, strong shielding, and excellent flexibility, making it suitable for tight routing in enclosures, racks, or portable test kits. The PTFE dielectric and braid shield construction help maintain signal integrity across a broad frequency range, reducing interference and ensuring cleaner measurements or transmissions. On one end, a BNC male connector offers the familiar bayonet-style coupling that locks quickly and securely into oscilloscopes, analyzers, radios, and other RF instruments. The opposite end features an MCX male plug, a compact push‑on interface commonly found on GPS modules, embedded wireless boards, and miniaturized RF circuits. This combination makes the cable ideal for bridging lab instruments to modern miniature devices without compromising performance. Each assembly is precision-terminated to provide consistent impedance and reliable mechanical strength at both connector interfaces. The flexible jacket and strain relief help protect against everyday handling, bending, and vibration, so the cable holds up well under repeated use. These assemblies are well-suited for telecommunications setups, industrial and commercial systems, defense and aerospace lab work, and a wide range of RF development and testing scenarios. If you need a compact, high‑performance interconnect between BNC and MCX equipment, these BNC Male to MCX Male Plug RG316 Cable Assemblies deliver a practical, professional-grade solution you can integrate with confidence.

• BNC male to MCX male plug configuration for direct connection between standard RF gear and compact modules
• Uses 50 Ohm RG316 coaxial cable for low-loss
• high-frequency signal transmission
• Flexible
• lightweight cable ideal for tight spaces and portable test setups
• Secure BNC bayonet coupling for quick
• reliable attachment to instruments and equipment
• Compact MCX male plug interface for GPS
• wireless
• and embedded RF applications
• Good shielding performance to help reduce interference and maintain signal integrity
• Durable construction with quality terminations for long service life and repeated use
• Suitable for telecom
• lab test and measurement
• industrial
• and RF prototyping environments
