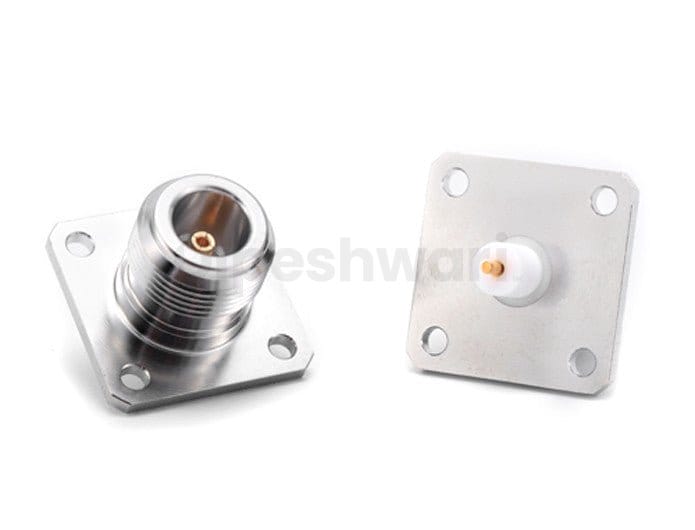

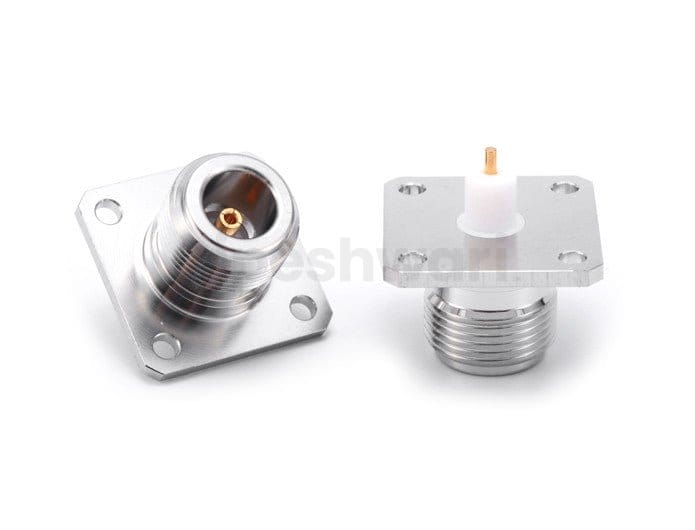

This connector is compact RF solution for rugged applications. It is a Flange Mounted connector, with a square 25mm flange with four mounting holes. This allows for a solid mechanical fixation to the front panel of cases, or to use in bulkheads or custom housings. Once installed, the connector is fixed rigidly in place which helps to keep the alignment of the connector correct, and also helps to stop unwanted stress on the connector-cable joint. The connector is a Female N-type connector, which means that it will connect to a Male N-type plug. The N-type connector has a threaded collar, which screw together to provide a strong and repeatable connection. The N-type connector is also highly resistant to vibration and shock. The square flange format is ideal for small panels, or for mounting in a grid pattern on a panel. The four holes in the flange provide even distribution of the torque when tightening the screws to the panel, which helps to stop the panel warping or coming loose due to thermal expansion/contraction or other mechanical stress. This type of connector is commonly used in RF enclosures, base stations, test equipment, and other communication equipment and laboratory equipment. The connector body is made from a tough metal, with a conductive plating, to provide good signal strength and also good shielding effectiveness. The connector is designed for use with a wide range of RF frequencies, and is typical for use with N-type connectors. The N Female 4Holes Flange Mounted Sq.25mm connector is a rugged and reliable panel mounted connector, ideal for use in a wide range of applications. It provides a strong and repeatable connection, and is resistant to vibration and shock. Its compact square flange format makes it ideal for use in small spaces or where a grid mounting pattern is required. The even spacing of the four mounting holes allows for even torque to be applied to the panel screws, which helps to prevent panel warping or loosening due to thermal or mechanical stress. It is suitable for use in a wide range of applications, including new RF chassis, upgrading existing equipment, and for use as a standard panel mounted connector.

• N female RF interface compatible with standard N male plugs
• Square 25 mm 4-hole flange for secure panel or bulkhead mounting
• Threaded N-type coupling for robust
• vibration-resistant connections
• Compact footprint suitable for dense or space-constrained layouts
• Even four-screw mounting for stable
• stress-free installation
• Metal body construction for durability and effective shielding
• Suitable for a wide range of RF and communication applications
• Supports repeatable mating cycles for test and production environments
