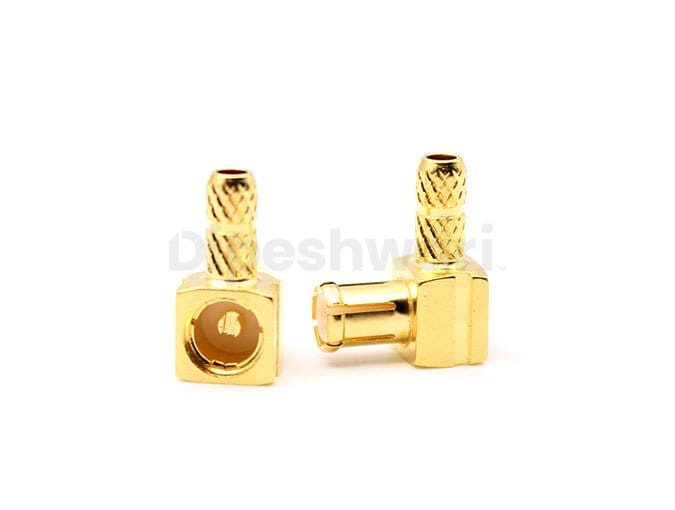

This MCX Male Right Angle Crimp for RG316 Cable is intended for the use of engineers, installers and hobbyists. They require a small RF connector of good quality that does not compromise on signal. The MCX connector is designed for use with RG316 Coaxial Cable and maintains a constant 50 ohm impedance with low loss. The Right Angle version of the MCX plug is ideal for use within small enclosures, around crowded PCBs and anywhere a straight connector would not fit. The low profile bend in the connector cable means that the cable sits neatly to the side of the connector. This has several benefits, the first being that there is less mechanical stress on the connector and cable. This in turn means that the life of the connector and cable will be extended. The second benefit is that the Right Angle connector is easier to use in cramped conditions. The MCX connector is a Crimp Type and is therefore easy to use. Simply place the end of the cable into the connector body and use the appropriate Crimp Tool to crimp the connector to the braid and dielectric of the cable. Once crimped the connector is secure and will withstand normal use. MCX Male Right Angle Crimp Connectors are commonly used for GPS modules, RF test leads, wireless communication equipment, IoT devices and other small RF front ends. They are ideal for use in portable equipment and for use in equipment that is to be battery powered as they are small, light and do not require a lot of space for cable routing. They are also ideal for one off prototypes as well as for small production runs.

• Compact MCX male right angle plug designed for RG316 coaxial cable
• Maintains consistent 50-ohm RF impedance for reliable signal performance
• Right-angle profile saves space and supports neat cable routing in tight areas
• Crimp-style termination for secure
• vibration-resistant connections
• Suitable for GPS
• wireless communication
• IoT
• and RF test applications
• Lightweight
• low-profile design ideal for compact and portable devices
• Engineered for stable electrical performance over a broad RF frequency range
• Durable construction for long-term use in lab
• field
• or production environments
