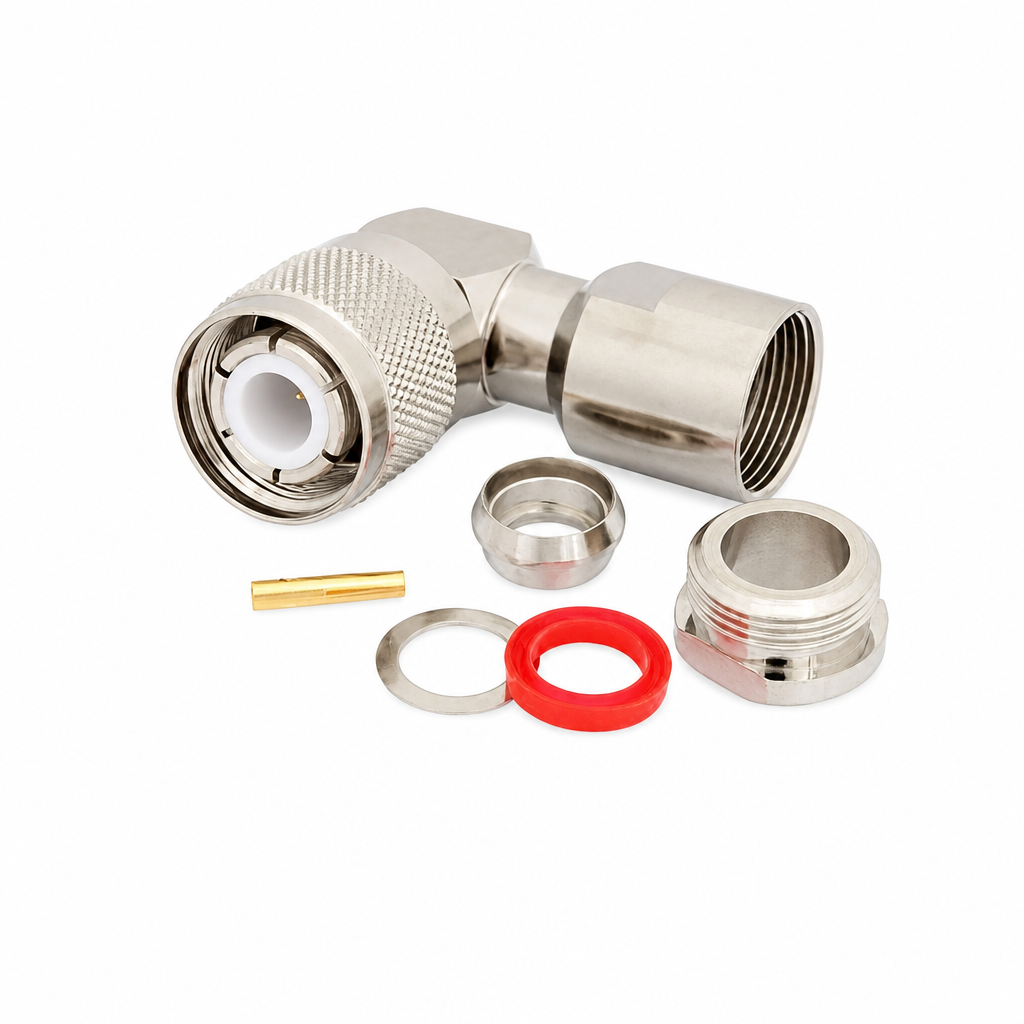

The HN Male Right Angle Clamp for RG393 Cable is a robust RF connector used in very high power and very high frequency applications where high stability and durability are a must. The interface used in this Right Angle Plugs is the well-proven HN interface with threaded coupling for good protection against vibration and accidental disconnection. This connector is specifically designed for use on RG393 coaxial cables and features a clamp type attachment to the outer braid with a 50ohm impedance performance. This Right Angle Plug is ideal for use in very crowded racks, for connections into the back of cases and for behind equipment panel connections where straight connectors would cause problems with bending of the cables or limit the use of the space. The high quality metal body and precision machined parts all combine to give very low insertion loss and high reliability over long periods of use. The connector is rated for use in RF generator, matching networks, power amplifiers and test equipment connections where stable and low loss connections are essential. The connection to the RG393 cable is made by first stripping the cable to the correct lengths, then the center conductor is attached to the contact, the braid is then properly covering the entire conductor area and finally the clamps are tightened to hold the entire assembly in place securely. The high quality connectors are repeatable and can be used for new RF assemblies, for upgrading older systems and for replacing of worn out connectors on existing 393 cables.

• HN male right angle RF connector designed for RG393 coaxial cable
• Clamp‑style attachment for secure mechanical retention and stable performance
• 50‑ohm impedance suitable for high‑power
• high‑frequency RF applications
• Right‑angle body for improved cable routing in tight spaces and equipment racks
• Threaded HN coupling for vibration‑resistant
• reliable connections
• Rugged metal construction for long‑term durability and repeated mating cycles
• Supports use in RF generators
• matching networks
• power amplifiers
• and test systems
• Engineered for low loss and consistent VSWR when properly installed
